RG6U 9.5TV Female to Male Coaxial Patch Cord For Set Top Box Satellite

Name: RG6U 95TV Female to Male Coaxial Patch Cord For Set Top Box Satellite
Brand: OEM Produce
Price: 1 USD

China RG6U 9.5TV Female to Male Coaxial Patch Cord For Set Top Box Satellite wholesale

Place of Origin : Hangzhou, China

Brand Name : OEM Produce

Certification : CE. ROHS.

Model Number : RG6 TV-9.5 Patch cord

MOQ : 1000pcs

Packaging Details : 1Pcs/ Plastic Bag

Delivery Time : 20days after deposit

Payment Terms : TT. LC

Supply Ability : 5000km/ Month

Price : negotiatable

Color : White PVC

Lenth : customized

Useful : CATV MATV

Connector Type : TV-9.5 Female and Male

Unit Packing : PE Bag

Contact Now

RG6U 9.5TV Female to Male Coaxial Patch Cord For Set Top Box Satellite

RG6 Standard

Construction	Material	Diameter(mm)
Inner Conductor	BC / CCS	1.02
Dielectric	Foam PE	4.8
First Shield	Bonded AL Foil	18
Second Shield	AL Braid	60%
Outer Jacket	PVC	6.8

Electrical Characteristics

Impedance (Ω)	75±3
Capacitance (pF/m)	52±2
Velocity of Propagation(﹪)	85.0
Return Loss 5-1000MHz(dB)	≥22
Return Loss 1000-3000MHz(dB)	≥20

Attenuation(@20℃)

Frequency (MHZ)	Min Attenuation (dB/100ft)	Max Attenuation (dB/100m)
5	0.6	1.9
55	1.6	5.2
187	2.8	9.3
211	3.0	10.0
400	4.1	13.5
500	4.6	15.0
750	5.6	18.5
860	6.1	20.0
1000	6.6	21.5
1500	8.2	26.8
1800	8.8	28.9
2200	9.8	32.2
3000	11.5	37.6

RG6U 9.5TV Female to Male Coaxial Patch Cord For Set Top Box Satellite

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.

Mobile/ Whatsapp: +86 13616872763 | QQ/ Wechat: 398023701 | Skype: thomas-aite | Email: thomas@at-cable.com

Product Tags:

75 ohm bnc cable

satellite coax cable

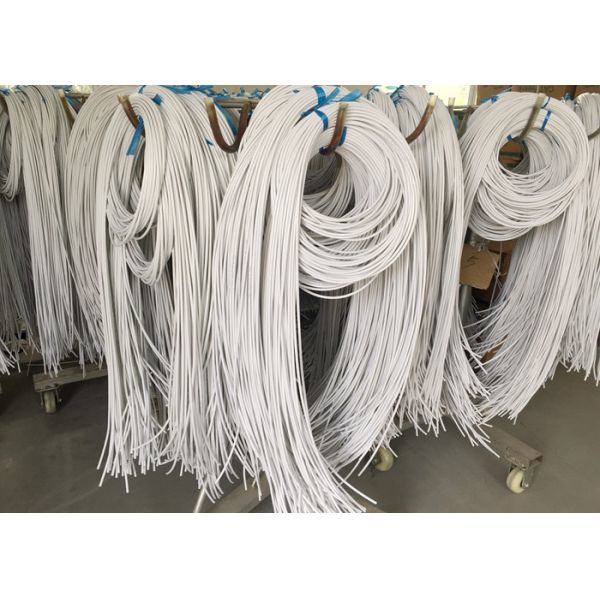

RG6U 9.5TV Female to Male Coaxial Patch Cord For Set Top Box Satellite Images
